3M 8170-P50 Perforated Film

Name: 3M 8170-P50 Perforated Film
Brand: EPD
SKU: 8170-P50
Price: 1120.50 USD
Availability: InStock

In Stock

Available only to 3M Authorized Dealers.
Already a 3M Dealer? Click here to login.
Want to become a 3M Dealer? Click here to apply.

3M Scotchcal 8170 Perforated Window Graphic Films can be purchased from EPD and shipped nationwide.

Graphics Roll Width

Graphics Roll Length

Clear

Quantity:

Price: $1,120.50

Share This Product

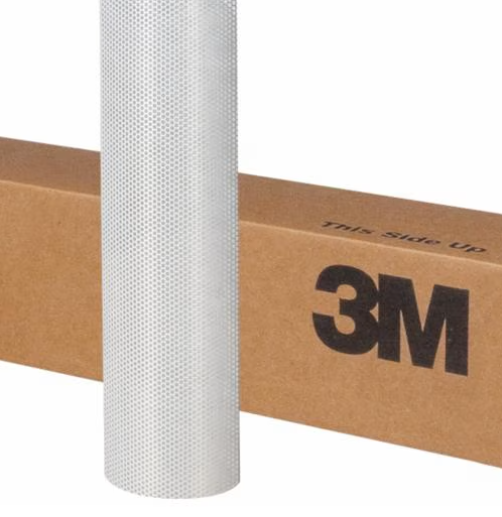

3M Scotchcal Perforated Window Graphic Film 8170-P50

3M Scotchcal Perforated Window Graphic Film 8170-P50 is a 4-mil cast vinyl 50% perforated film used for one-way visibility. With its high gloss and removable characteristics, 8170-P50 is ideal for architectural and vehicle window graphics using selected piezo ink jet printers.

Base Film: Cast Vinyl
Perforation Level: 50%
Film Color: White on the image side, black on the reverse side
Film Thickness w/o adhesive: 4 mils
Film Thickness w/ adhesive: 5-6 mils
Adhesive: Pressure-Sensitive
Adhesive Color: Clear
Adhesive Liner: Polyethylene-coated paper with a continuous, non-perforated paper liner
Removable: Yes (on most surfaces with heat during warranty period)

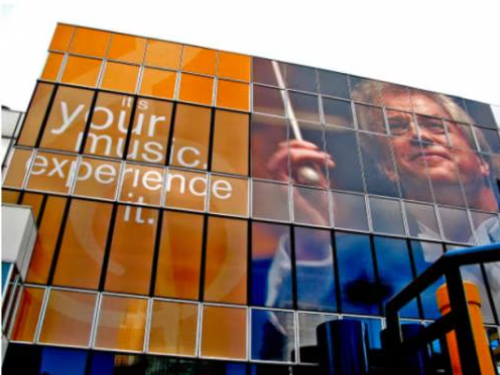

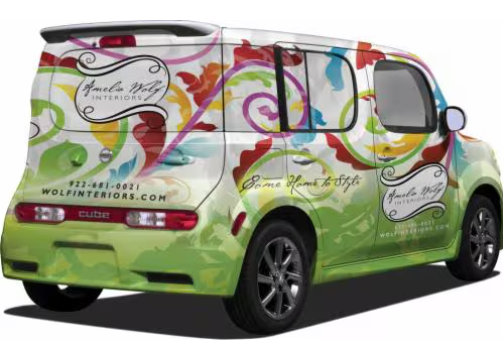

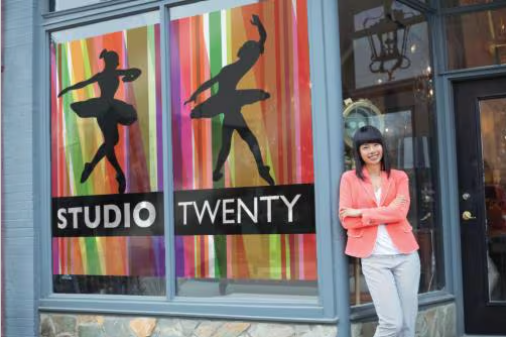

Windows, Vans, Buses, Metros, Trams, Vehicles, Cars
Surface Type: Flat and Simple Curves
Substrate Type: Transparent substrates such as acrylic, glass, polycarbonate, 3M vinyl films; painted metal
- Note: Substrates must not have coatings such as anti-reflection and scratch resistance, or built-in heating or defrosting elements, or wipers.
Application Temperature: 40°F to 100°F (4°C to 38°C) air and substrate
Application Method: Dry
